FEVF-89TX-1

FEVF-89F

FEVF-89T-ND

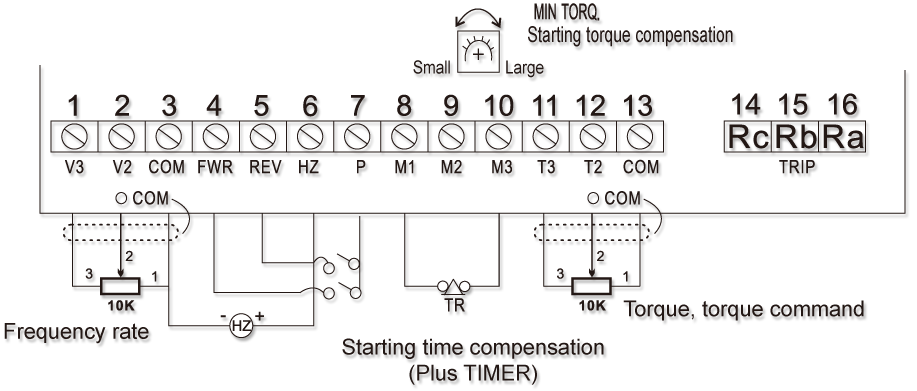

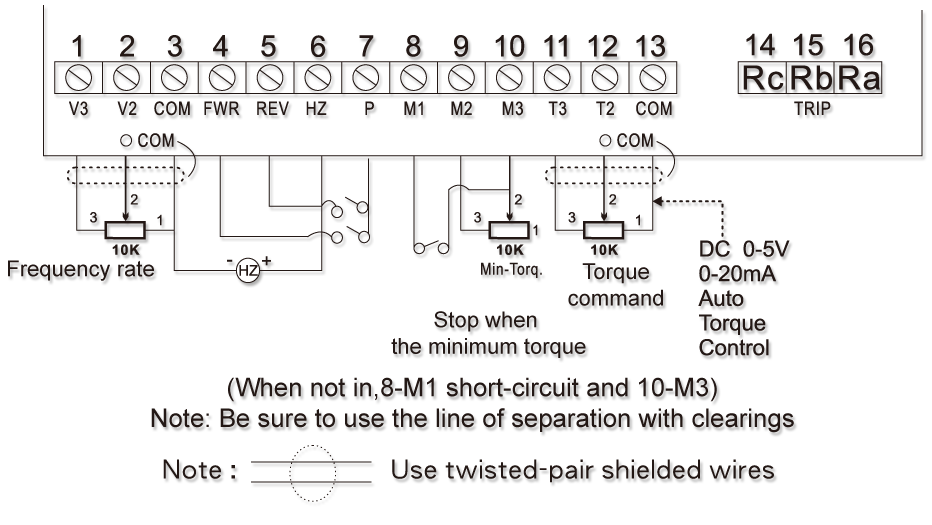

FEVF-89T Wiring diagram

B Variable Torque & Speed Inverter Torque converter

Extension cords For Remote 1 Gray 2 Purple 3 Blue 4 Orange 5 Green 6 Black

 7 White 11 Red 12 Yellow 13 Blue

Note:When there is a need when starting torque is greater than the running torque
