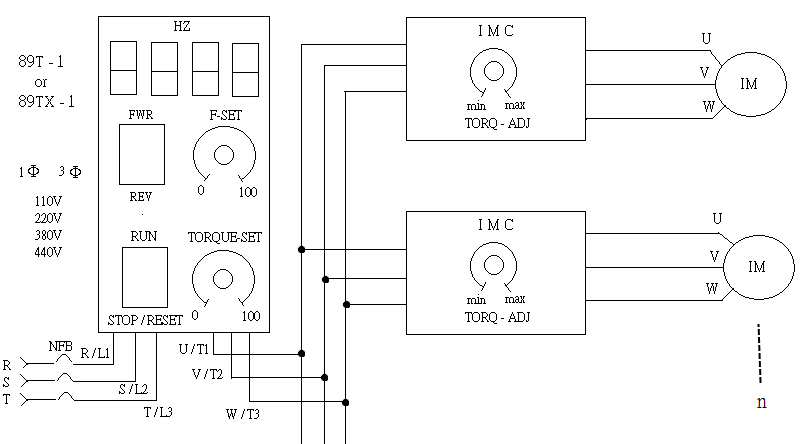

FEVF(89T1 OR 89TX-1) + IM C control multiple common motors

Example: 1 set of Fumao torque inverter can control the torque of multiple ordinary motors


Fumao Torque Inverter


Description:

  1. 1.A set of Fumao torque inverter can control the torque of multiple ordinary motors steplessly at the frequency and speed synchronization Under the adjustment, each group of IMC control can individually adjust the torque required by the ordinary motor
  2. 2.Start and run at the same time, stop at the same time

Note:

  1. 1.The frequency speed and torque torque of the torque inverter must be set under the basic setting, F-set % and torque torque % are above a certain value, that is, the U/T1, V/T2, The W/T3 output must have a certain output IMC control, so that the torque of the ordinary motor can be controlled normally and smoothly.
  2. 2.Different machines will have different basic settings
